Working system Full Automatic |
Wire Thickness Used Between 0,6 mm - 2,1 mm |
Mold eyelet spacing Between 2” - 4” |
|
Fence Mesh Height Min: 50cm - |
Production Capacity ~600 - 700 m2 / hour 3” eyelet size) |
Number of wire
It depends on the fence height and eyelet size |
|
Screen Type 7” PLC touch screen |
Machine Dimensions
6 m x 4 m |
Machine Working Area 350 m2 (10 m x 35 m)h(2,4 m) |
|
Machine Power
20 kW |
Electrical Energy Required
380 V |
Machine Weight
~4000 Kg |

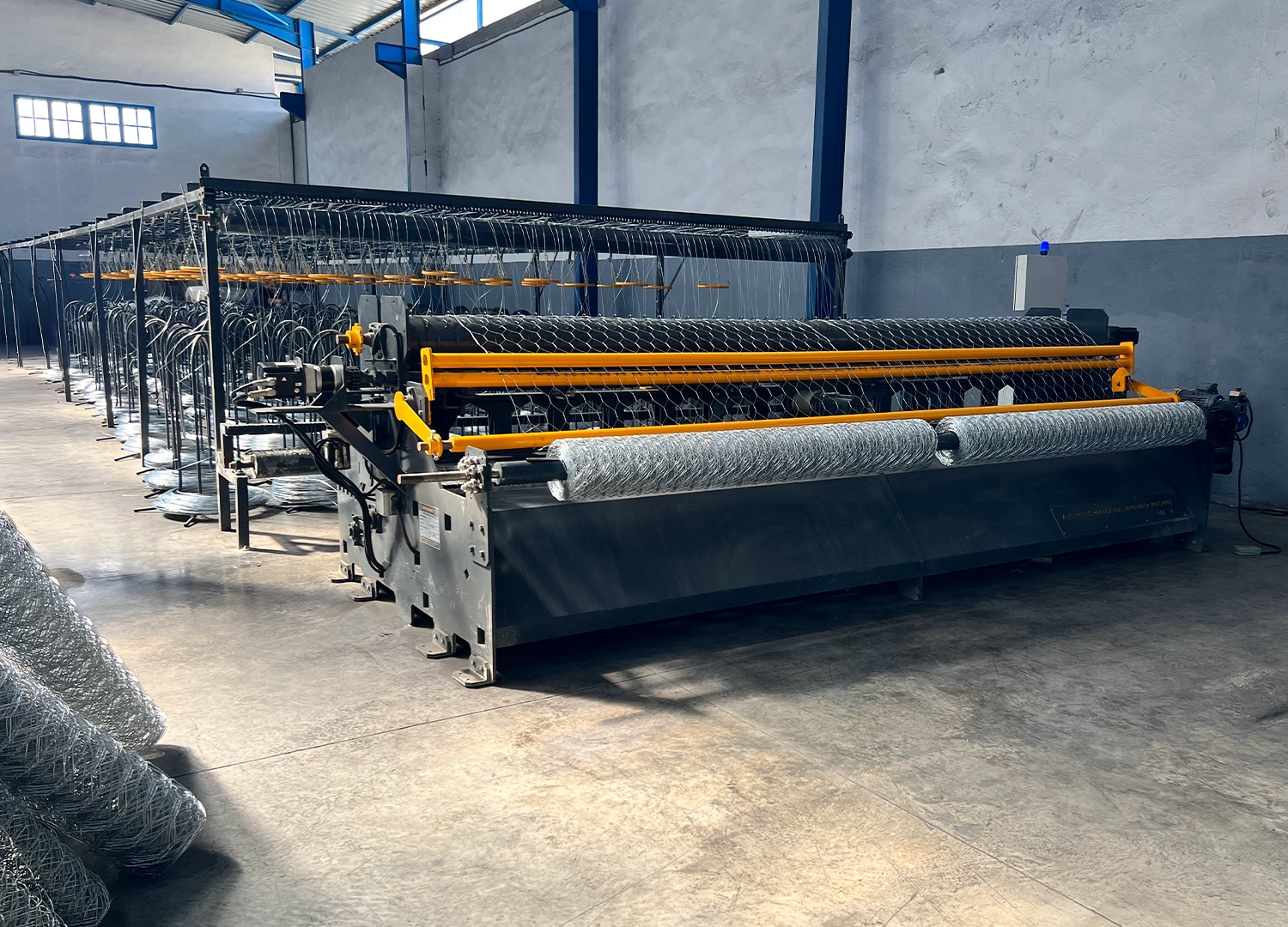

SVR BEE – 4
HIGH SPEED AUTOMATIC HEXAGONAL FENCE KNITTING MACHINE
The SVR BEE – 4 is the higher capacity top model of the SVR BEE – 1. With its 4.00 meter knitting width, it can knit three rolls of hexagonal wire simultaneously offering a wide working area. Thanks to the coiled system which replaces coil winding, production speed and capacity are high, providing a return on investment in a short time. With its fully automatic structure, it allows production for every need by double bending the wire in the middle.
7’’ PLC touchable screen allows easy adjustment of fence height, width and knitting speed. With its remote connection feature, the machine can be accessed worldwide via the internet.
Powered by 4 servo motors, BEE – 4 is an ideal choice for production processes with its high production capacity and technology
Touchscreen
Screen Option
Free Training
Free
Installation
Single Operator
24 Hours
Continuous Operation
Preparing 3 Coils at
the Same Time
