Working System Full Automatic |
Production Capacity ~15 - 25 m2 / Hour (42-55 Size) |
PVC Film Width Between 50 mm - 80 mm |
|
Machine Dimensions 1,6 m x 4 m x 2,2 m |
Wire Thickness Used Between 1,5 mm - 1,7 mm |
PVC Film Thickness 80 Micron (Tolerance %10) |
|
Screen Type Analogue Screen |
Machine Working Area
10 m2 (2 m x 5 m) h 2,4 |
Coil Winding Capacity 5-7 m2 (Grass Wire) |
|
Machine Power
5 kW |
Electrical Energy Required
380 V |
Machine Weight
1600 kg |
SVR MAMBA
AUTOMATIC GRASS WIRE PREPARATION MACHINE

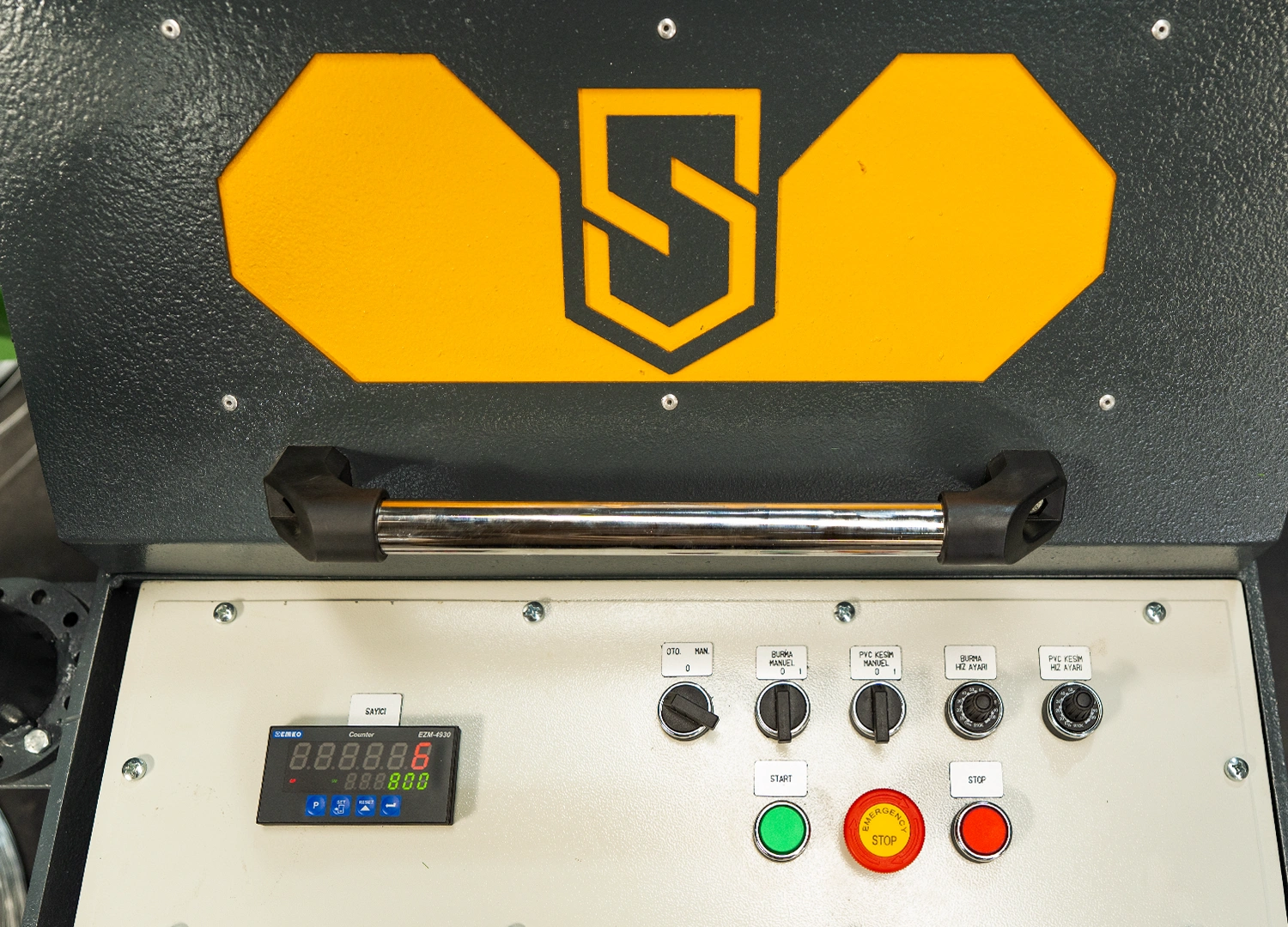

SVR MAMBA supports your future growth plans with its compact design. It offers perfection and uninterrupted production with its instant stop feature in case of PVC breakage or WIRE snagging. PVC cutting dimensions can be easily changed from the control panel. Thus, no part replacement is needed for different cutting sizes. Get to see the SVR Mamba machine, which stands out with its features and reach the peak of production!
3 Machine
Single Operator
Touchscreen
Screen Option
Free of charge
Education
Free of charge
Installation
24 Hours
Continuous Operation
10 pieces
Coil Gift
